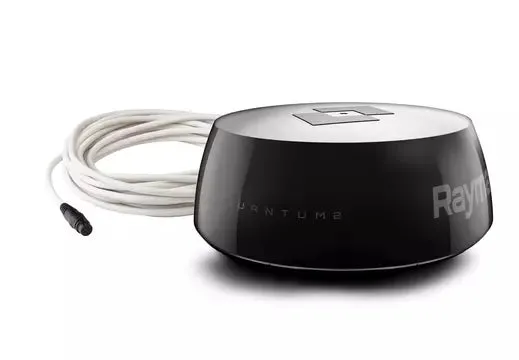

QUANTUM 2 WITH DOPPLER COLLISION AVOIDANCE TECHNOLOGY
Quantum 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound.

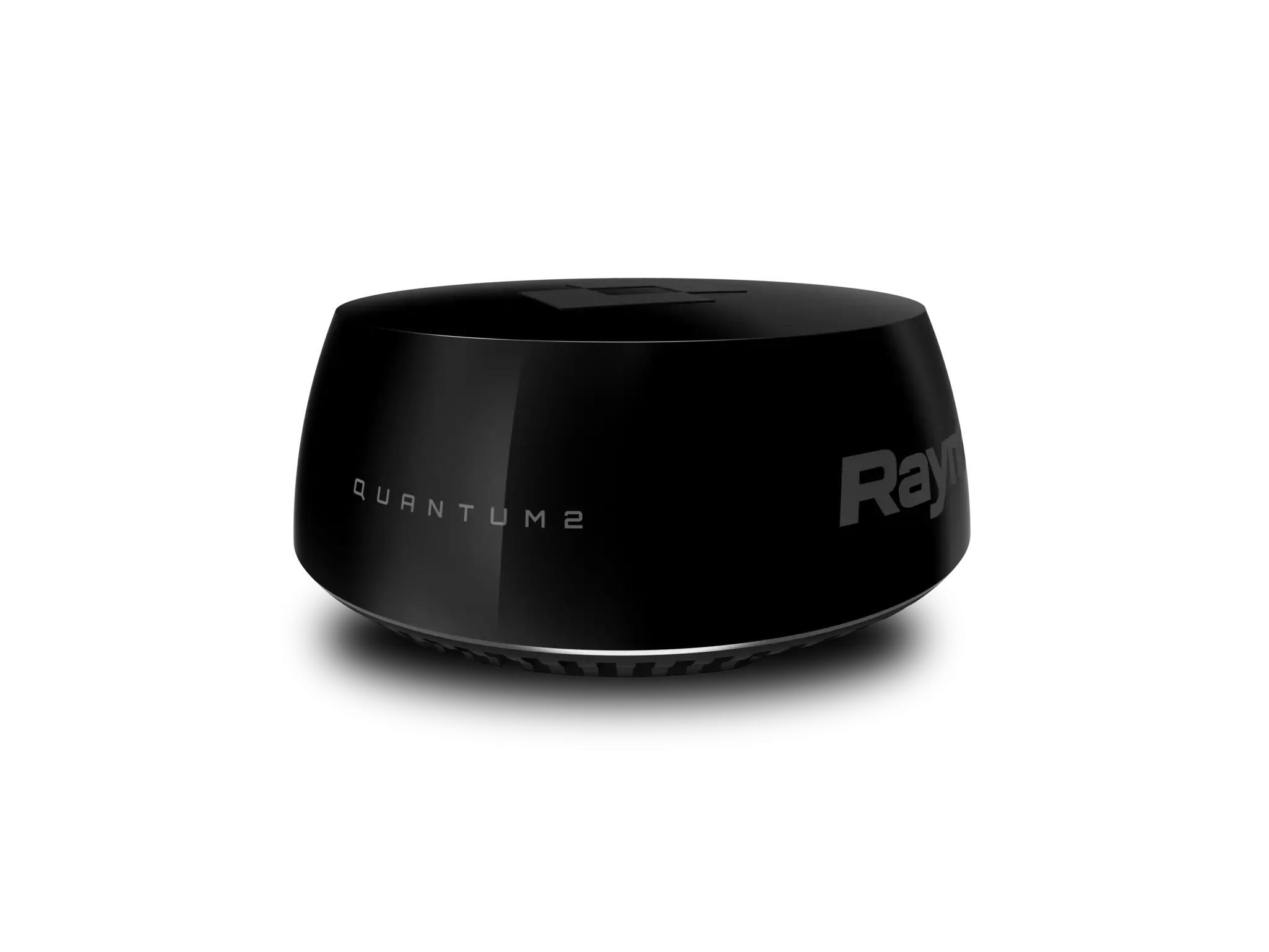

QUANTUM 2 BLACK: STAY AWARE WITH STYLE
Offering confident radar navigation and style, Quantum 2 Black adds a level of sophistication to any vessel.
Quantum 2 Black offers the same performance and safety-enhancing Doppler target tracking as the original white Quantum 2 in a premium black housing.
KEY FEATURES
- Quantum 2 Doppler Radar, perfect for Sailboats, RIBs, and smaller powerboats.
- Available as a standalone scanner with no power or data cable or with 10m and 15m cabling
- Provides excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
- Simplified, fast installation and can utilize existing Raymarine scanner fixing points
- Once installed, Quantum 2 starts up and is ready to go installed providing immediate awareness
SUPERIOR COLLISION AVOIDANCE
Easily identify dangerous targets. Raymarine Quantum 2 Doppler target processing identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.
Quantum 2 MARPA mode provides an effective means of dangerous target tracking. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.
General Specifics:
-
Dimensions: 541.0mm x 209.5mm
- Weight: 5.6kg
- Operating Voltage: Minimum 10.8V dc / Maximum 31.2V dc
- Power Consumption: Transmit mode (maximum): 17W / Standby Mode: 7W
- Waterproofing: IPX6
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -25°C to 70°C
- Maximum Wind Speed: 100kts
